Blower and Vacuum Packages Built for Your Application
Pneu-Vac Air offers standard and custom blower and vacuum packages incorporating the full line of M-D Pneumatics products.
Choose an unenclosed package for areas when space is limited and noise is not a primary concern. Choose an enclosed package for reduced noise and added equipment protection in indoor and outdoor applications.
Standard Unenclosed Packages include
- Incorporating the full line of M-D Pneumatics products
- Blower base combo, compact or tubular frame
- TEFC prem eff. motor-inverter ready
- Double-adjusting motor base
- V-drive w/ belt guard or direct-driven
- Inlet or inline filter
- Inlet silencer-unpacked or packed
- Discharge silencer-unpacked or packed
- Pressure or vacuum relief valve
- Expansion joints/flex connectors
- Check valve
- Pressure or vacuum gauge
- Temperature gauge
- Isolation pads
- Finish paint
Standard Enclosed Packages include
- Incorporating the full line of M-D Pneumatics products
- Lightweight panels for full access
- Maximum sound dBa reduction
- 3 standard sizes: 54, 65, and 92 (45L × 54W × 47H, 65L × 49W × 64H, 92L × 60W × 74H)
- Custom sizes are an option
- Front-mounted pressure gauge, blower and enclosure temperature gauge/switch, and differential filter gauge
- Powder-coated enclosure finish
- Watertight design for outdoor installation
M-D Factory Blower and Vacuum Packages

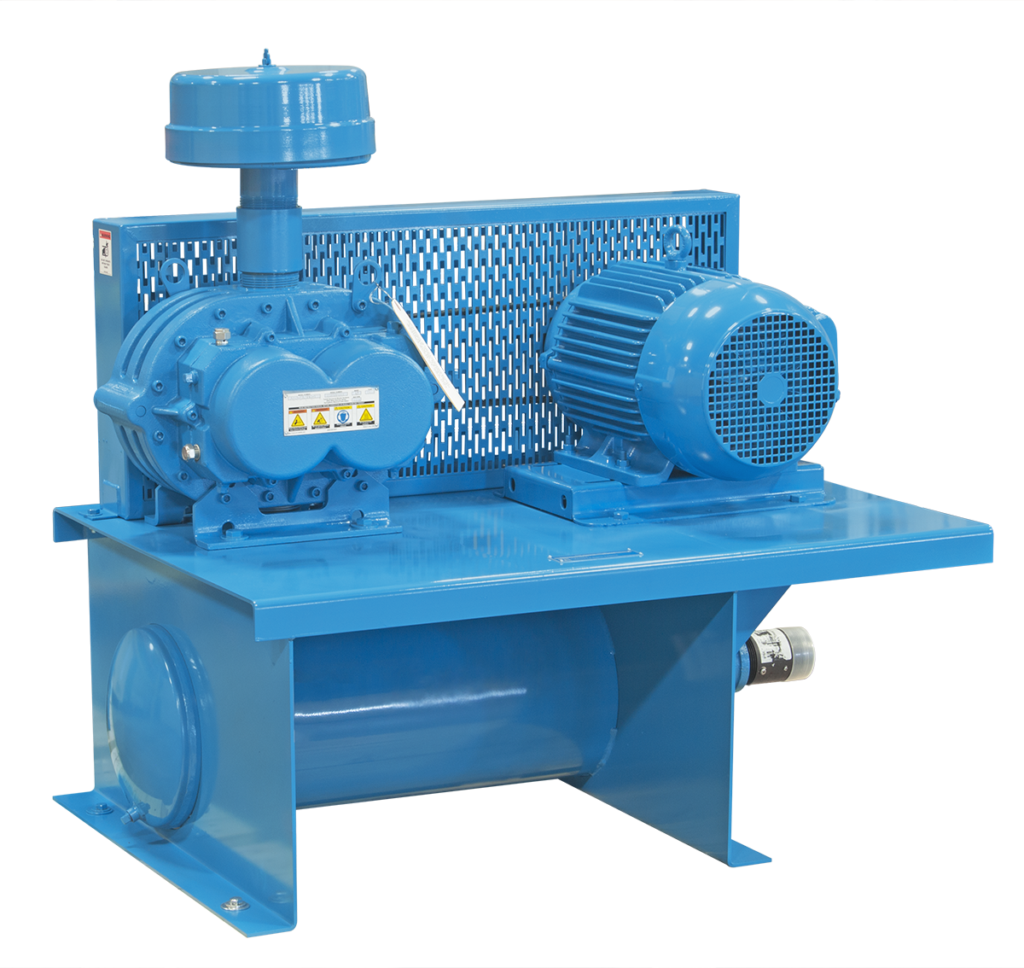

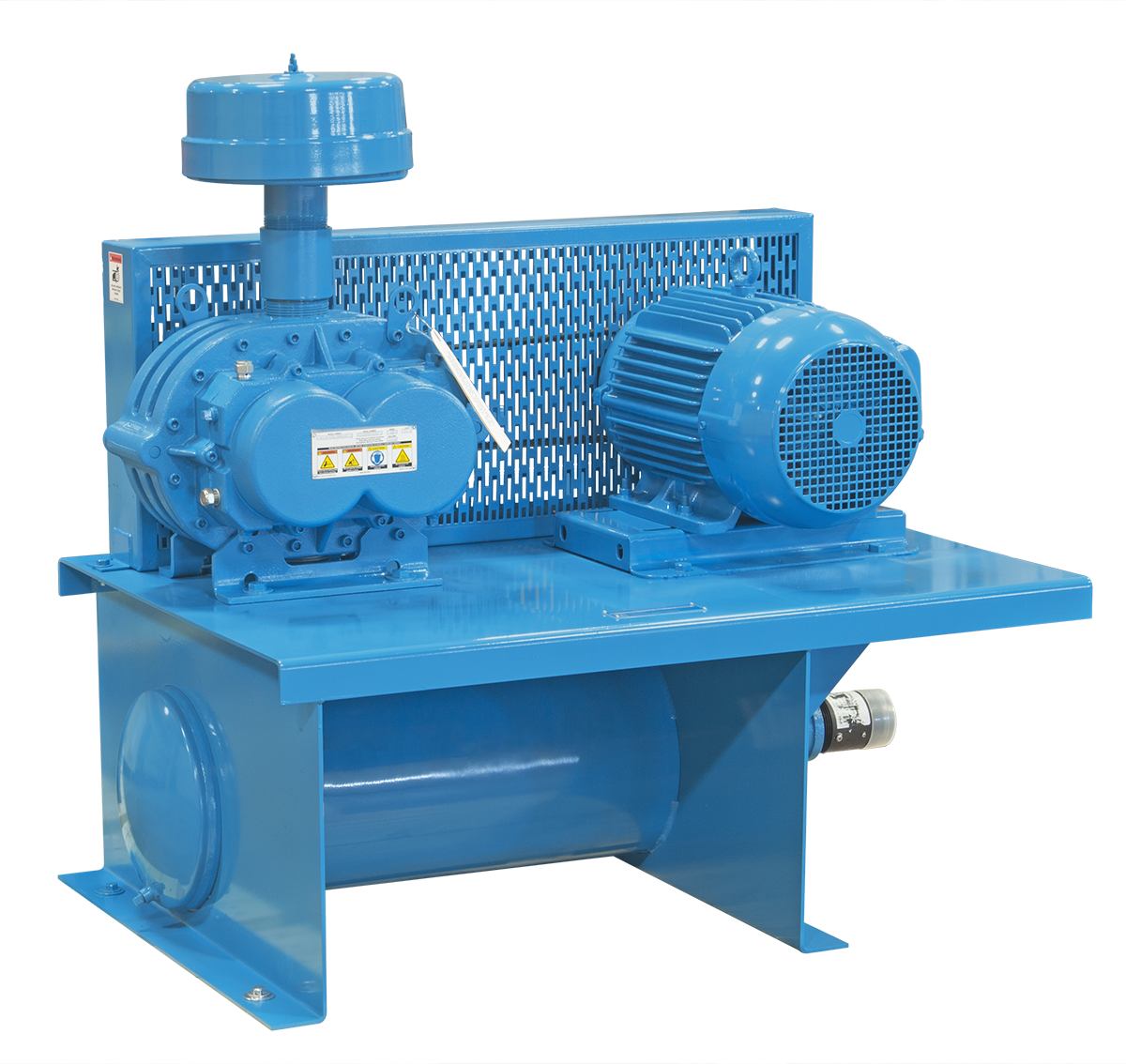

PneuPak
- Unenclosed-integrated silencer base combination
- Utilizing CP Series rotary positive blowers and vacuum pumps
- Up to 15 PSIG or 16″ Hg vacuum

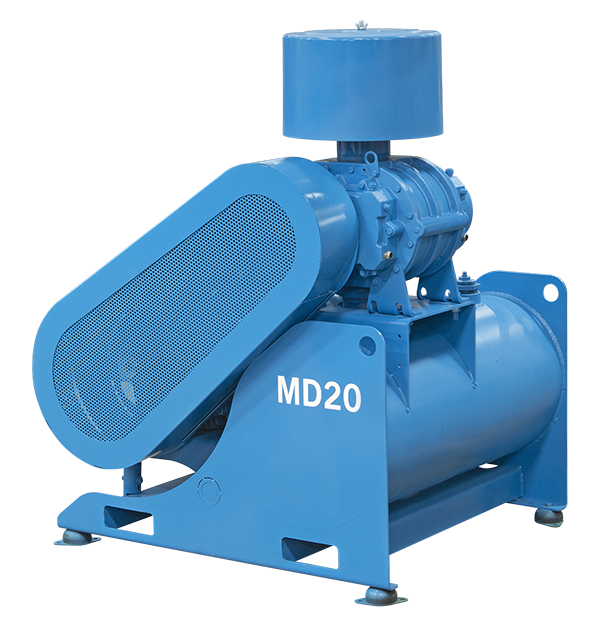

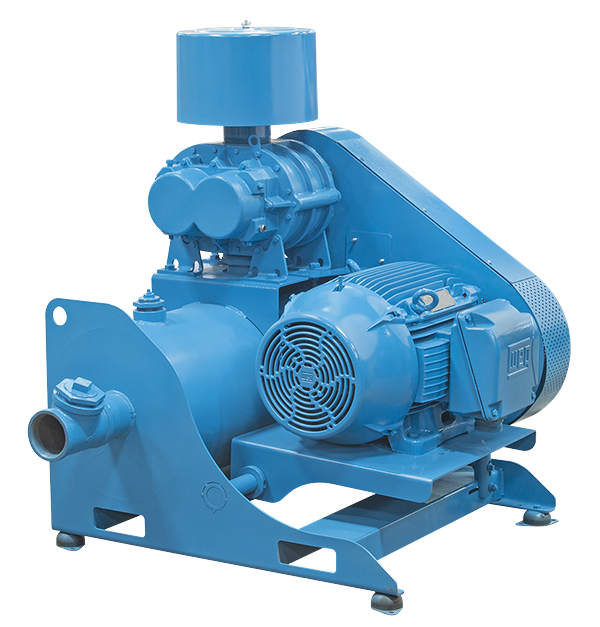

MD10 and MD20
- Unenclosed compact blower packages
- Compact blower base with integrated silencer
- Inlet Filter with automatic tensioning base

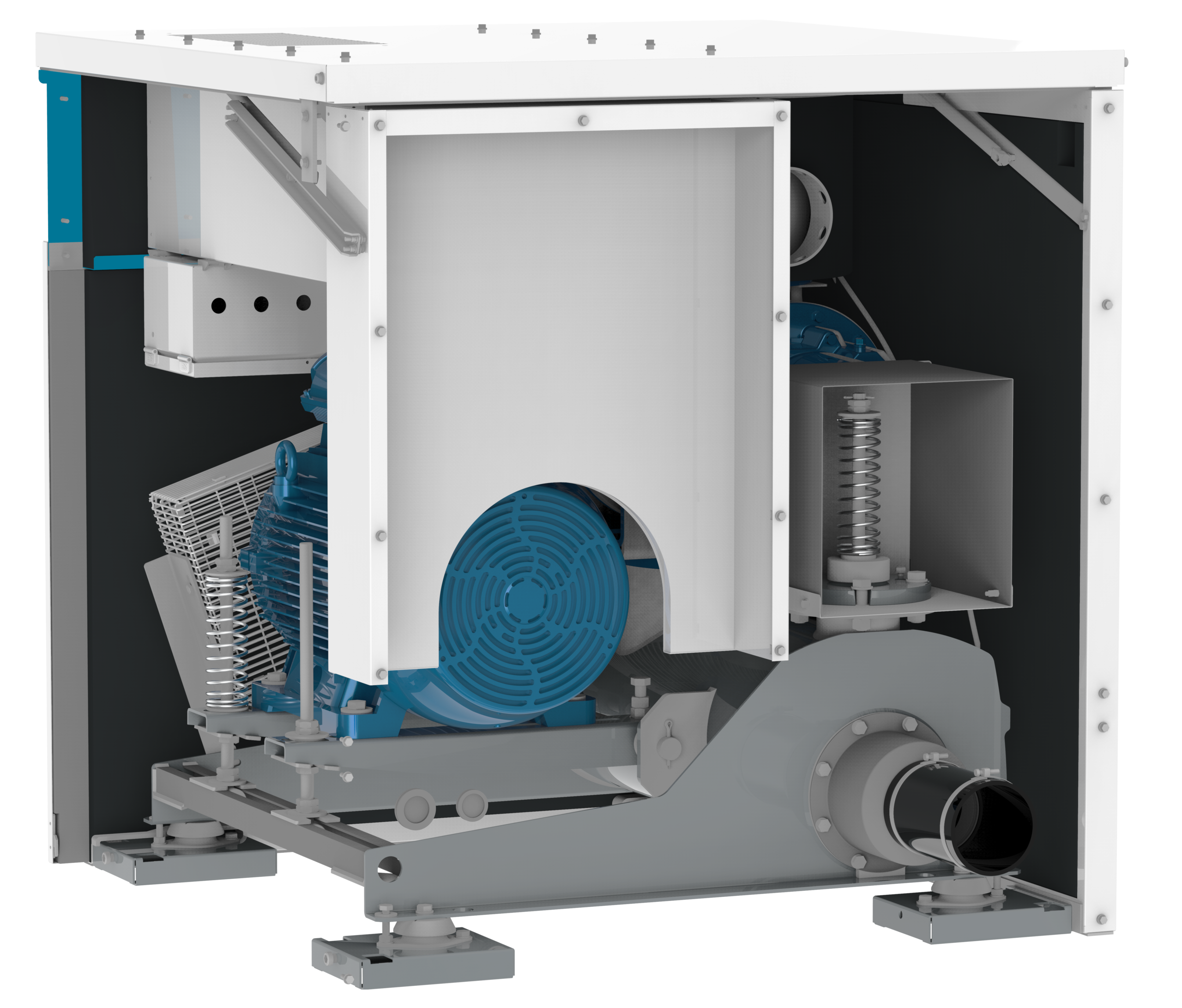

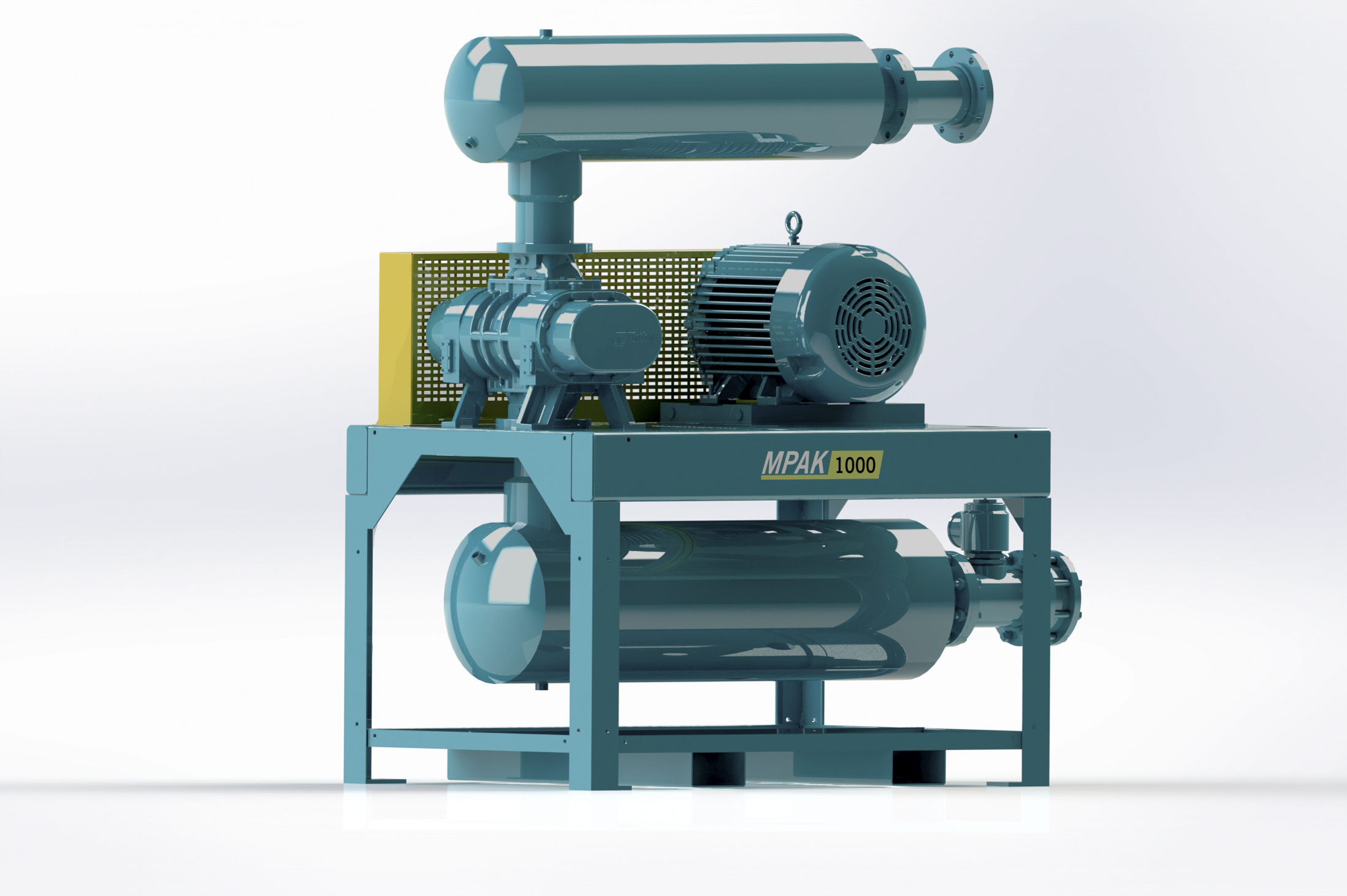

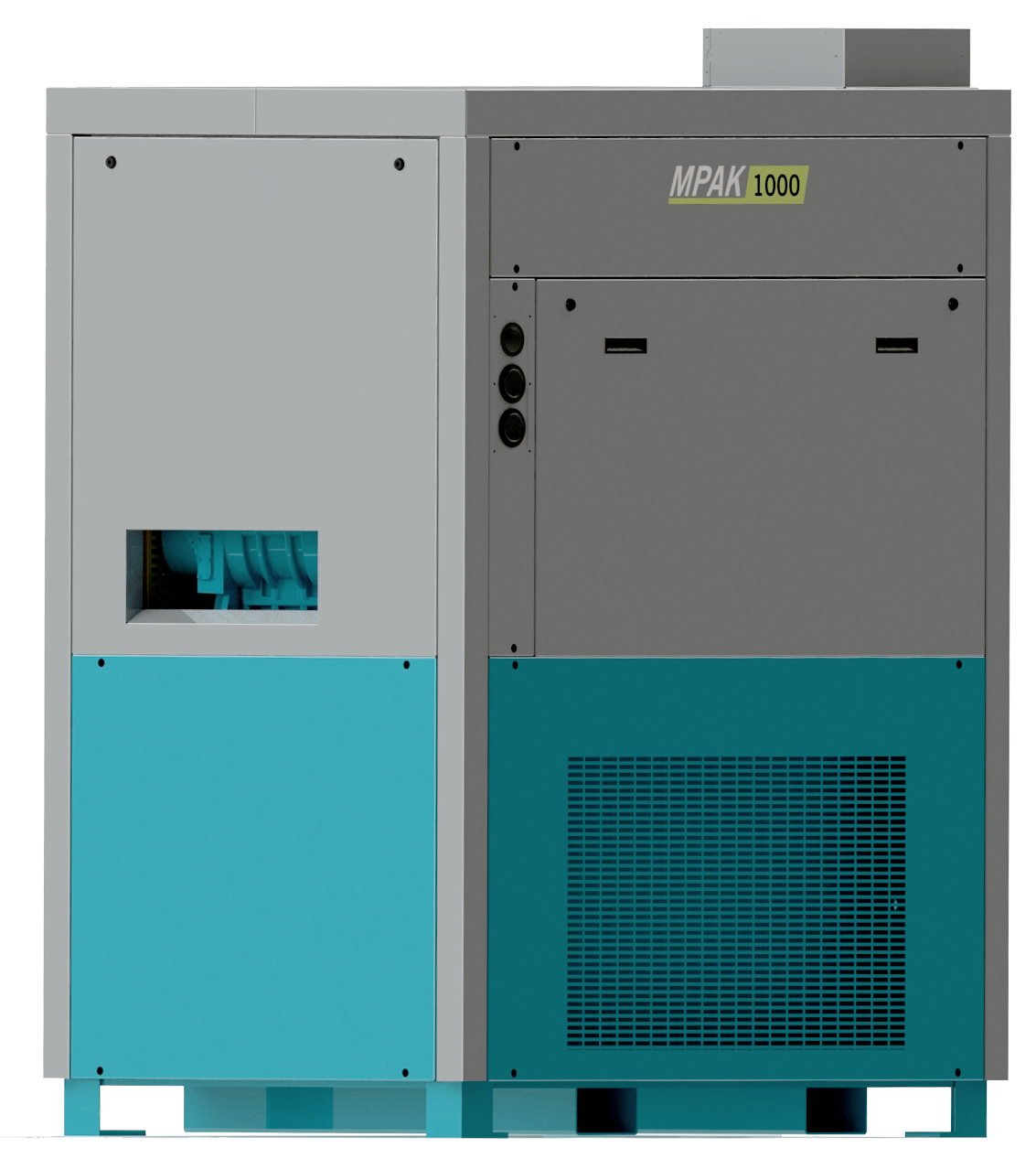

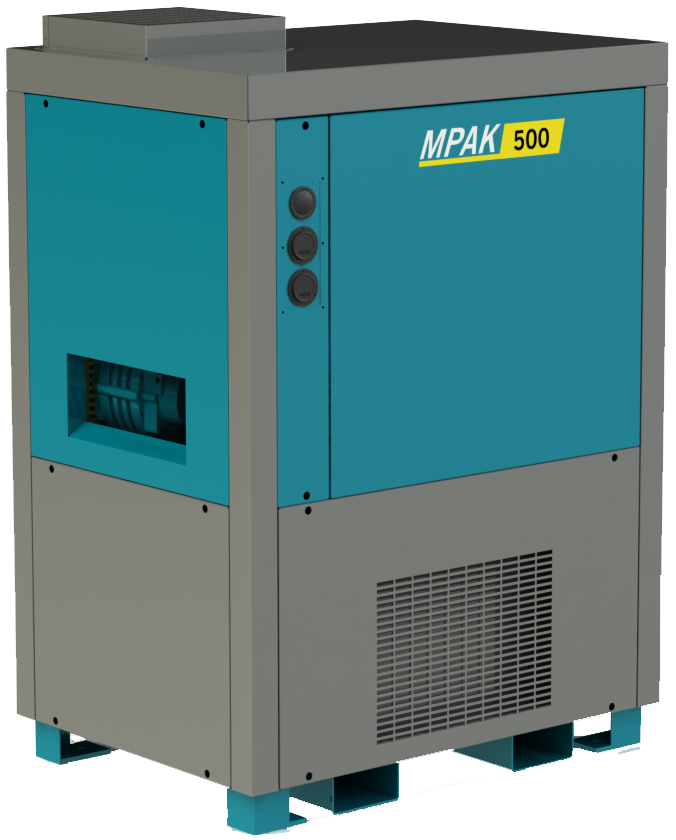

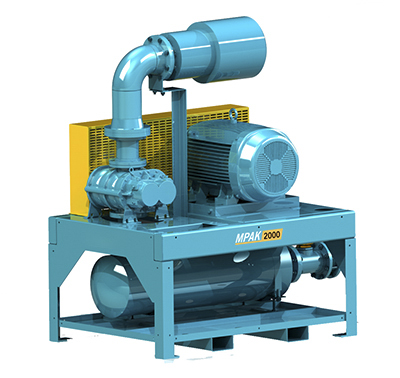

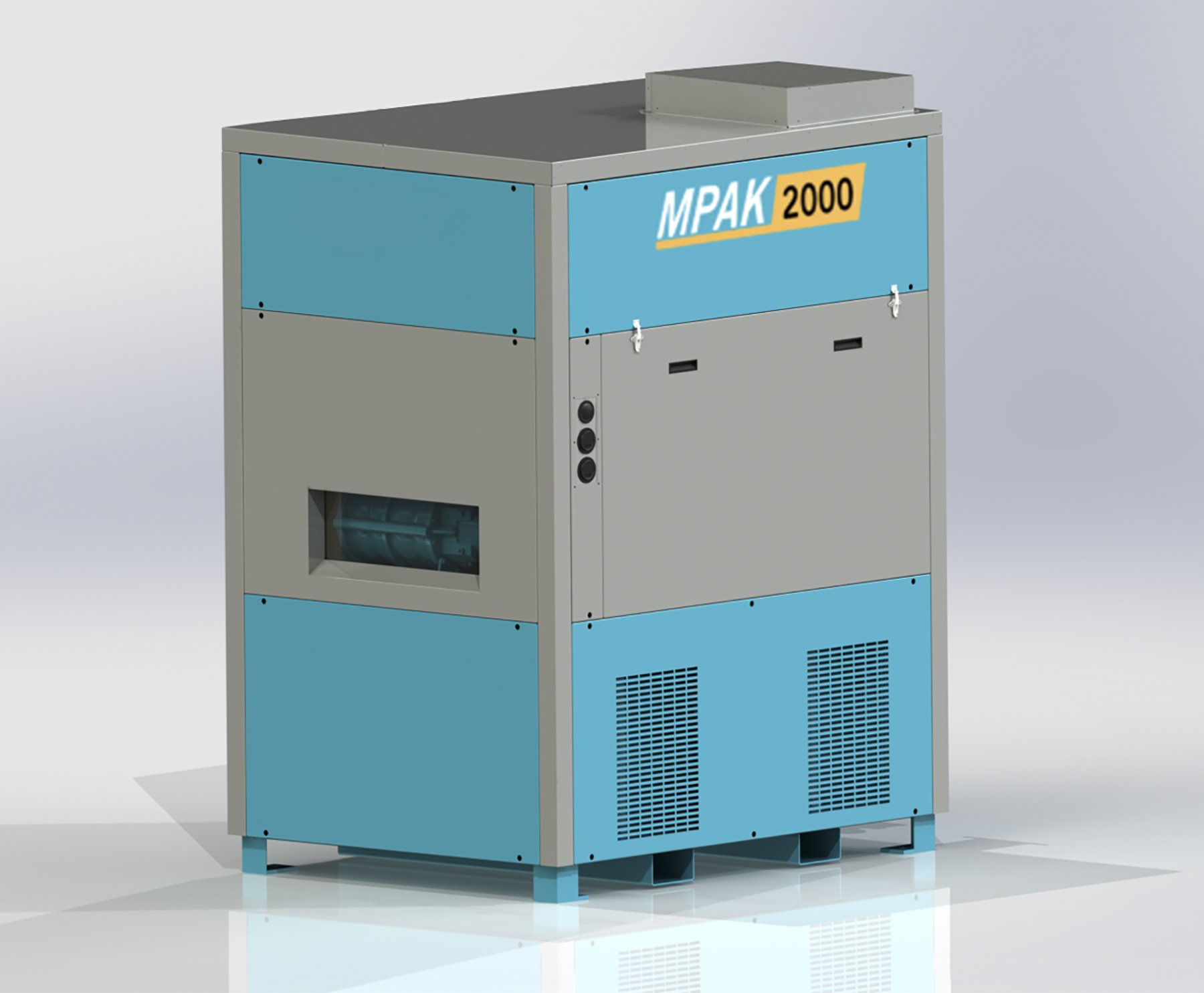

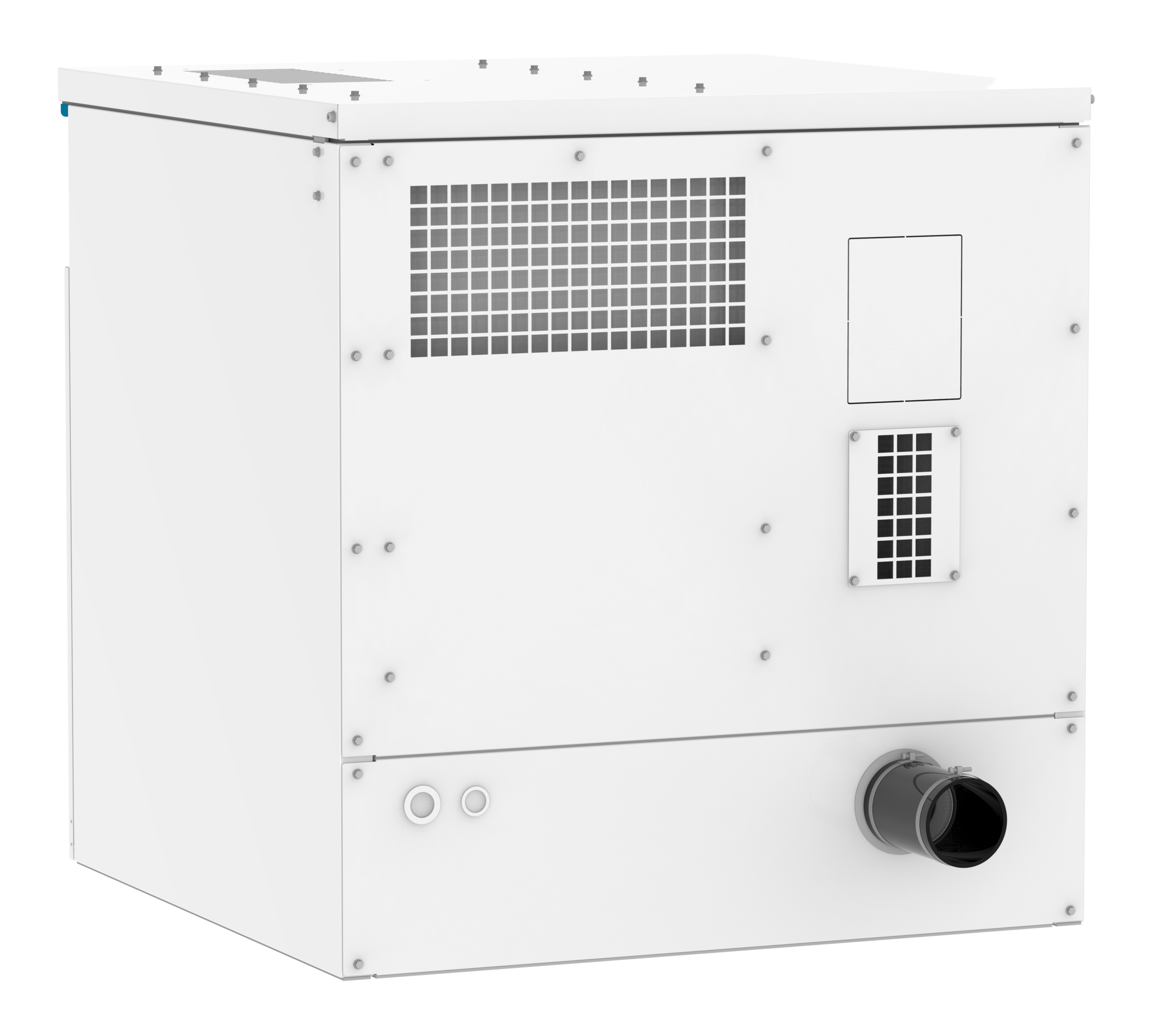

MPAK 500, 1000, 2000
- Unenclosed and enclosed blower options
- Package configurations provide flow from 250 to 1985 CFM,
- Pressure from 5 to 15 PSI, and vacuum from 12″ to 17″ Hg.
- Mounting base includes integral fork truck pockets
- Utilizes CP, PD Plus, and QX

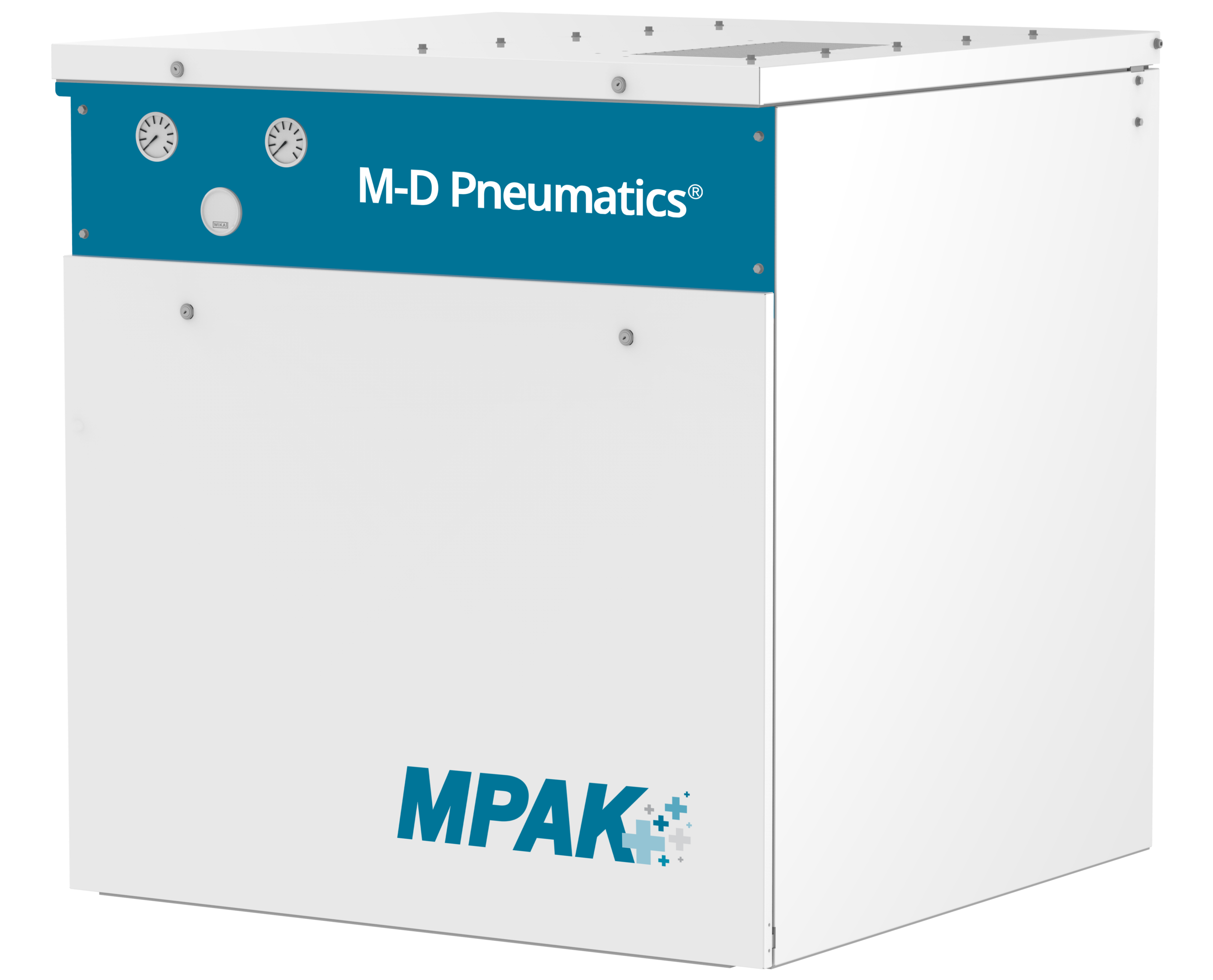

MPAK+
- CP 5006 and CP 6008

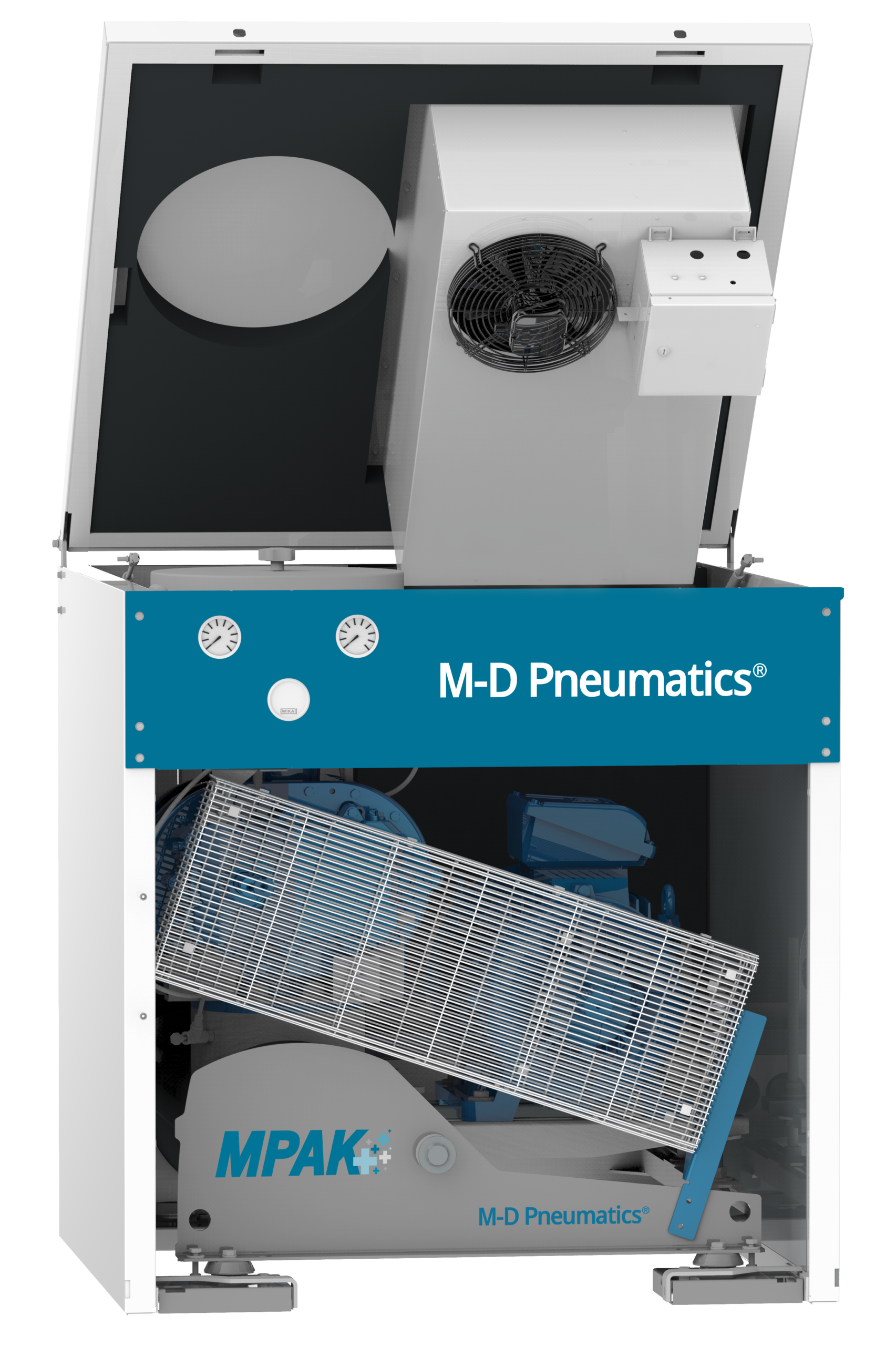

- Enclosed design features front and top access to easily check oil levels and perform routine maintenance.
- Oil/Oil lubricated, air service blowers to provide flow from 200 to 550 CFM, pressure from 6 to 13 PSI, and vacuum from 10″ to 14″ Hg.

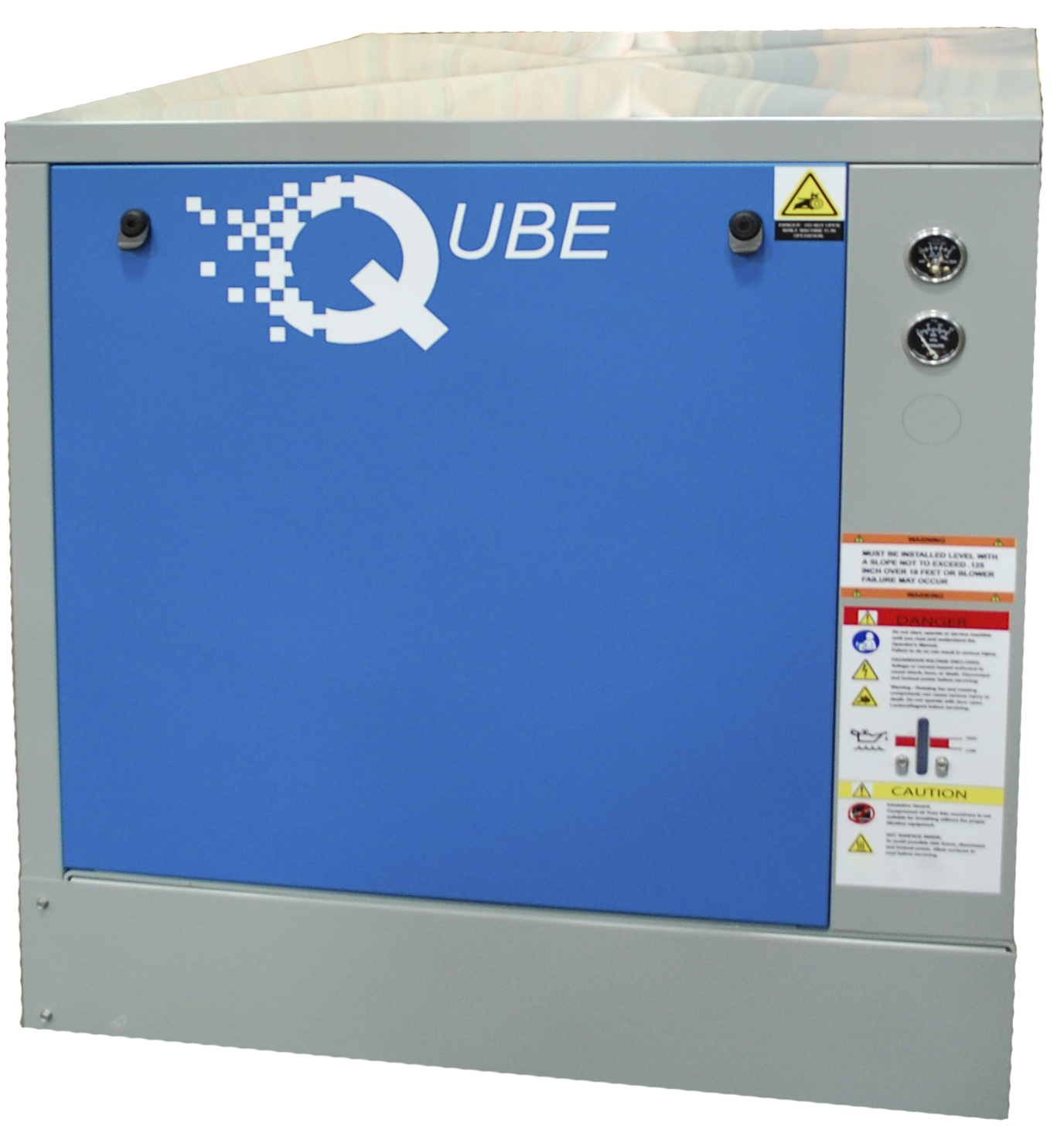

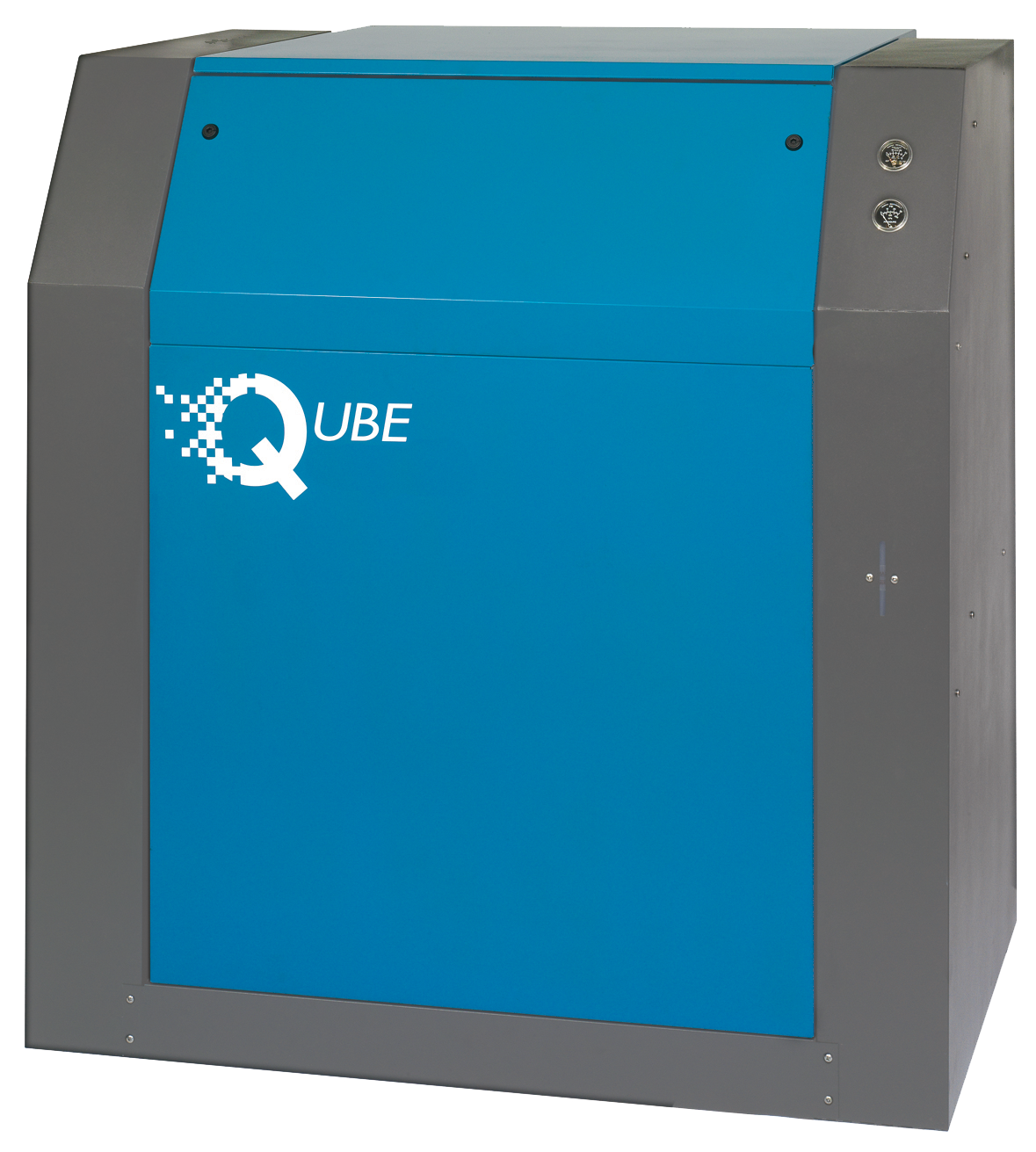

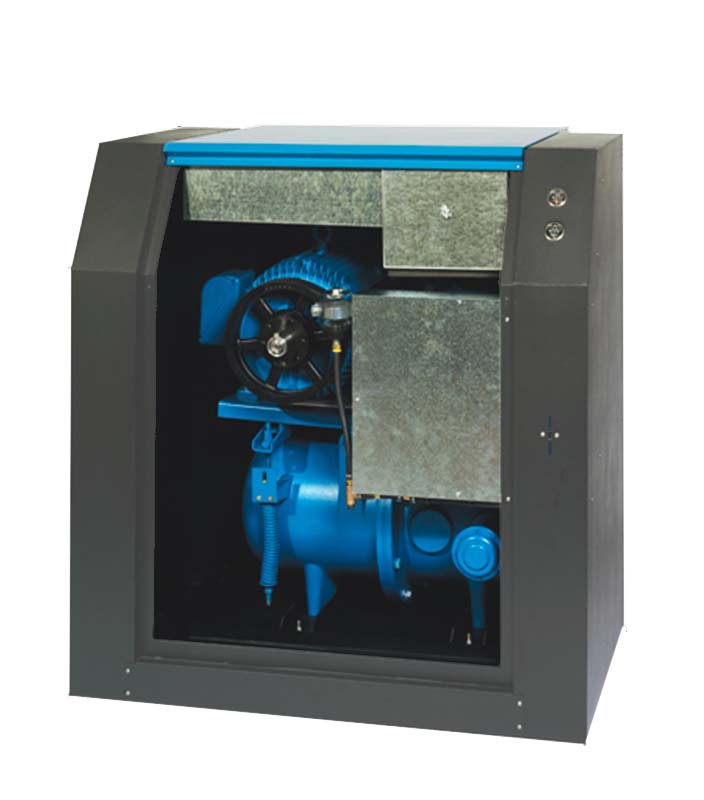

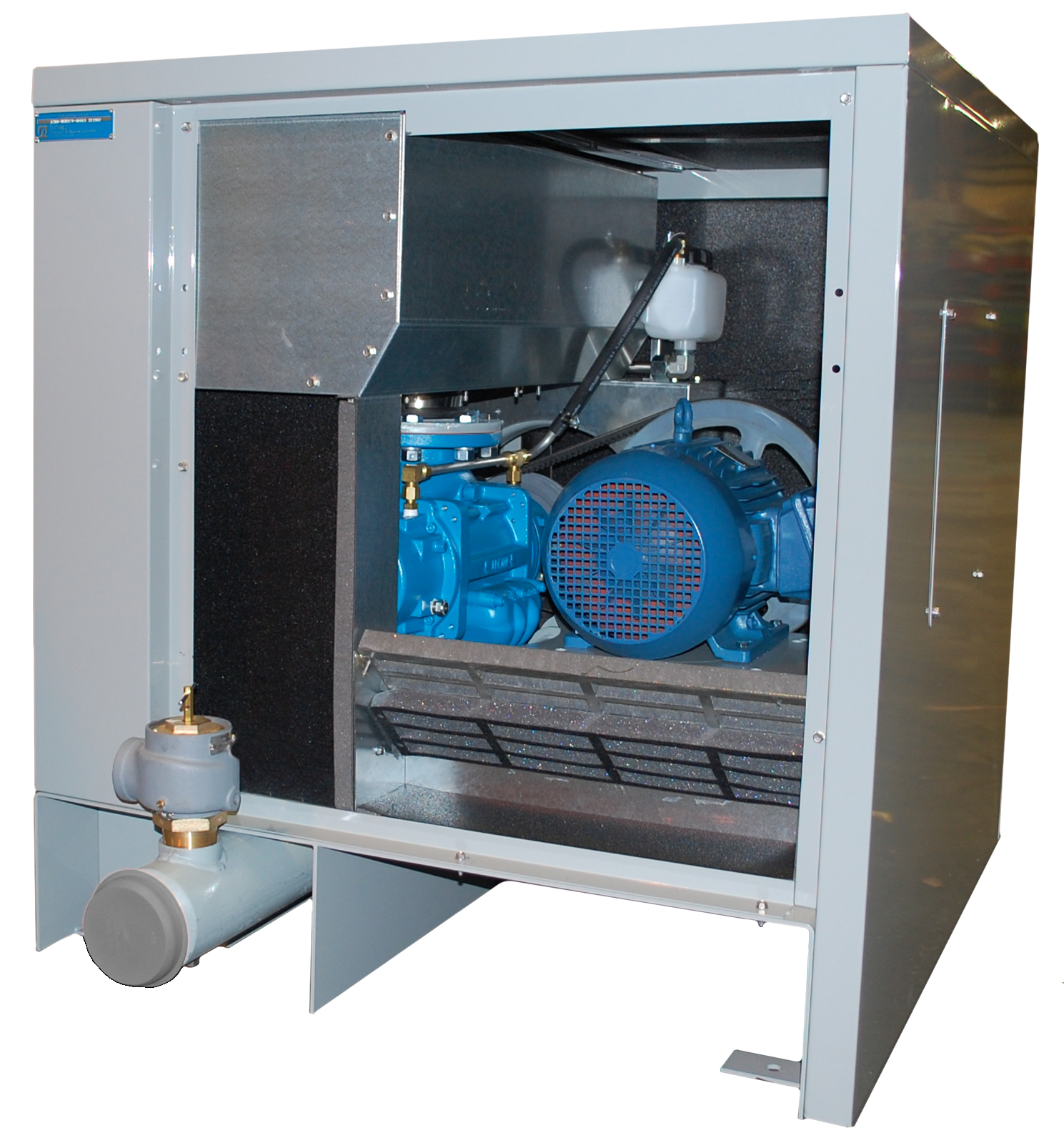

Qube
Legacy product; please contact Pneu-Vac Air for information.

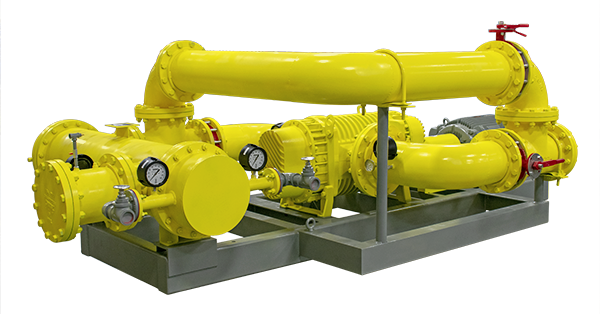

Custom-Engineered for Your Application
Need something beyond a standard configuration? Pneu‑Vac can design and build a blower package around your performance requirements, operating conditions, space limitations, and other project specifications.
