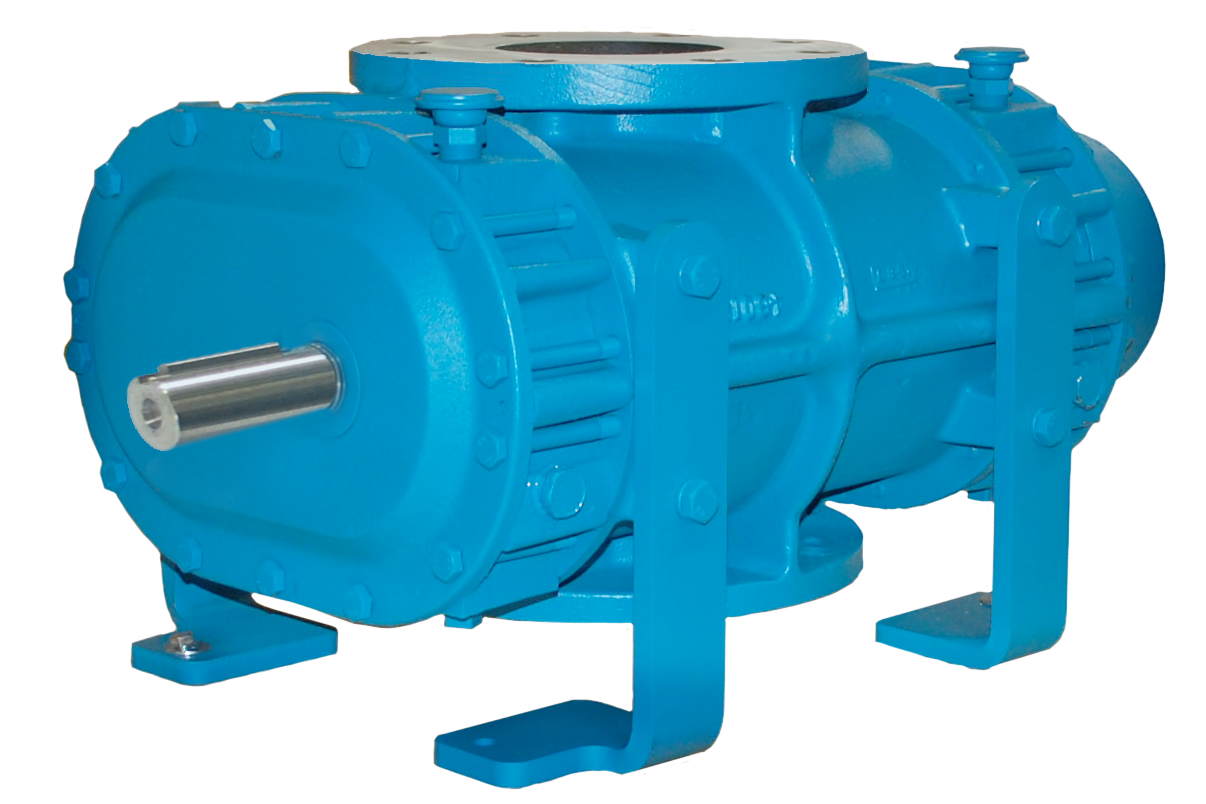

Replaces the RCS RAM 409 from Howden Roots
Model Numbers
| Current Model Number | Previous Model Number |
|---|---|
| Dual Splash Lube, Bilobe-Threaded | |
| 4609-A3B2CV1-A | 4609-17B2 |
| 4609-A3T2CV1-A | 4609-17T2 |
| 4609-A3L2CV1-A | 4609-46L2 |
| 4609-A3R2CV1-A | 4609-46R2 |
Additional Model Numbers
Please contact Pneu-Vac Air for additional model number information.
Flow by Direction and Rotation
Documentation
Brochures
Performance Curves
Operating & Service Manuals
Drawings
See Operator’s Manual for lubrication estimate; proper oil level is ½ way up the sight glass(es) while the unit is not running. The latest IO&M version is on this page; for earlier revisions please contact Pneu-Vac Air, LLC.
Operating Specifications
| Max. RPM: | 4000 |
| Max. Pressure: | 18 PSI |
| Max. Vacuum: | 16 IN HG |
| Max. Temp. Rise: | 260 °F |
| Approx. Weight – Bare Pump: | Not available |
